Kia Corporation · Light Tactical Vehicle
KLTV181 Personnel Carrier
The eight-seat variant of the Kia Light Tactical Vehicle. Same drivetrain, same mobility envelope as the KLTV151, with a raised protected cell built around one job: moving a squad safely and putting it down ready to work.
0Seats
0mmOverall height
0mmGround clearance
0mmFording depth
Gallery
Eight seats, one envelope.
Click any frame to open it full size. Arrow keys move through the set.
Technical data
Manufacturer specification.
Transcribed from the Kia data sheet supplied to AIK Auto Tech. The 181 differs from the 151 principally in overall height and seating capacity.
| Overall length | 4,900 mm |
|---|---|
| Overall width | 2,195 mm |
| Overall height | 2,320 mm |
| Ground clearance | 410 mm |
| Gross vehicle weight | 5,700 kg |
| Engine power | 225 @ 3,200 ps @ rpm |
| Engine torque | 51 @ 1,750 kg·m @ rpm |
| Maximum speed | 130 km/h |

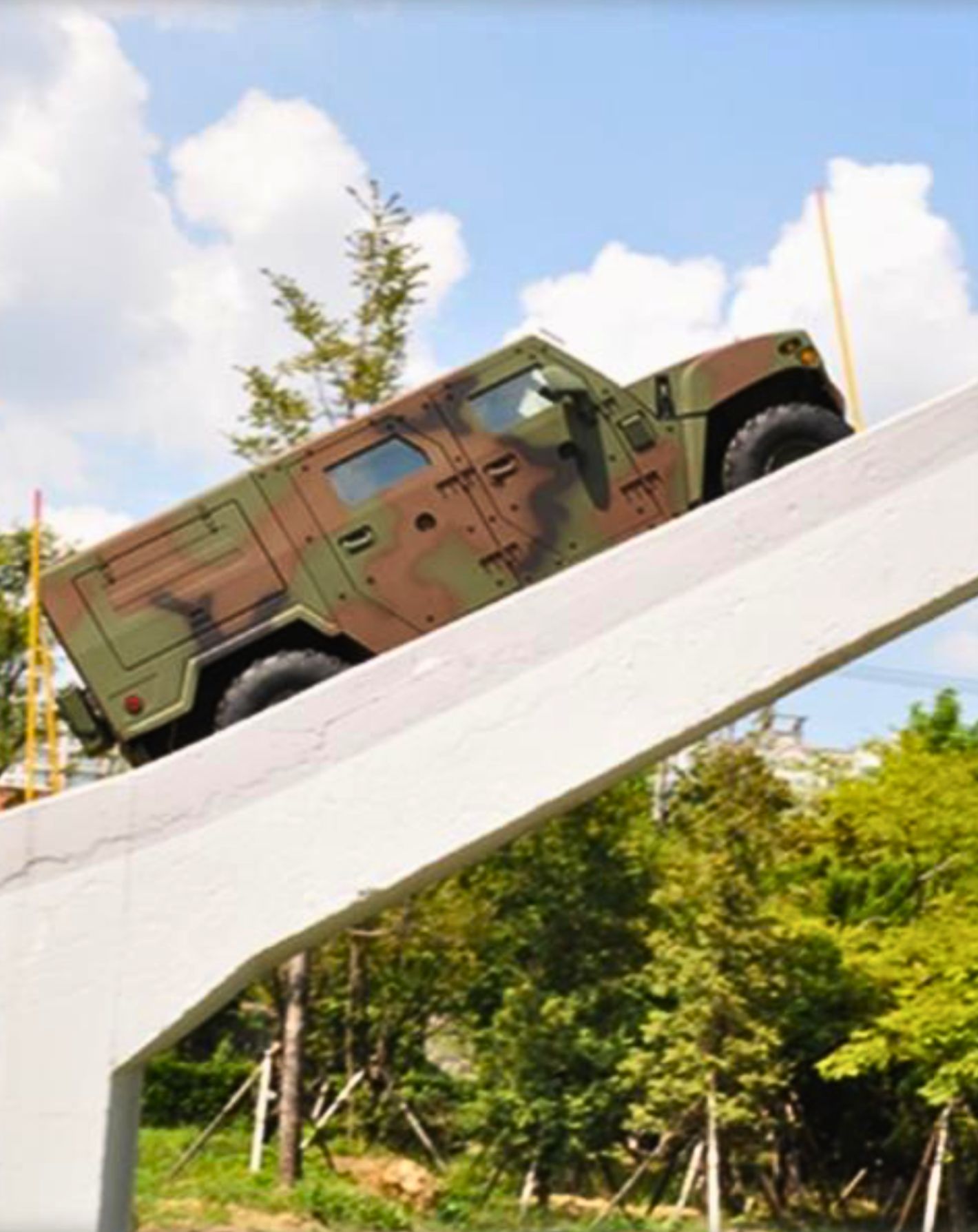

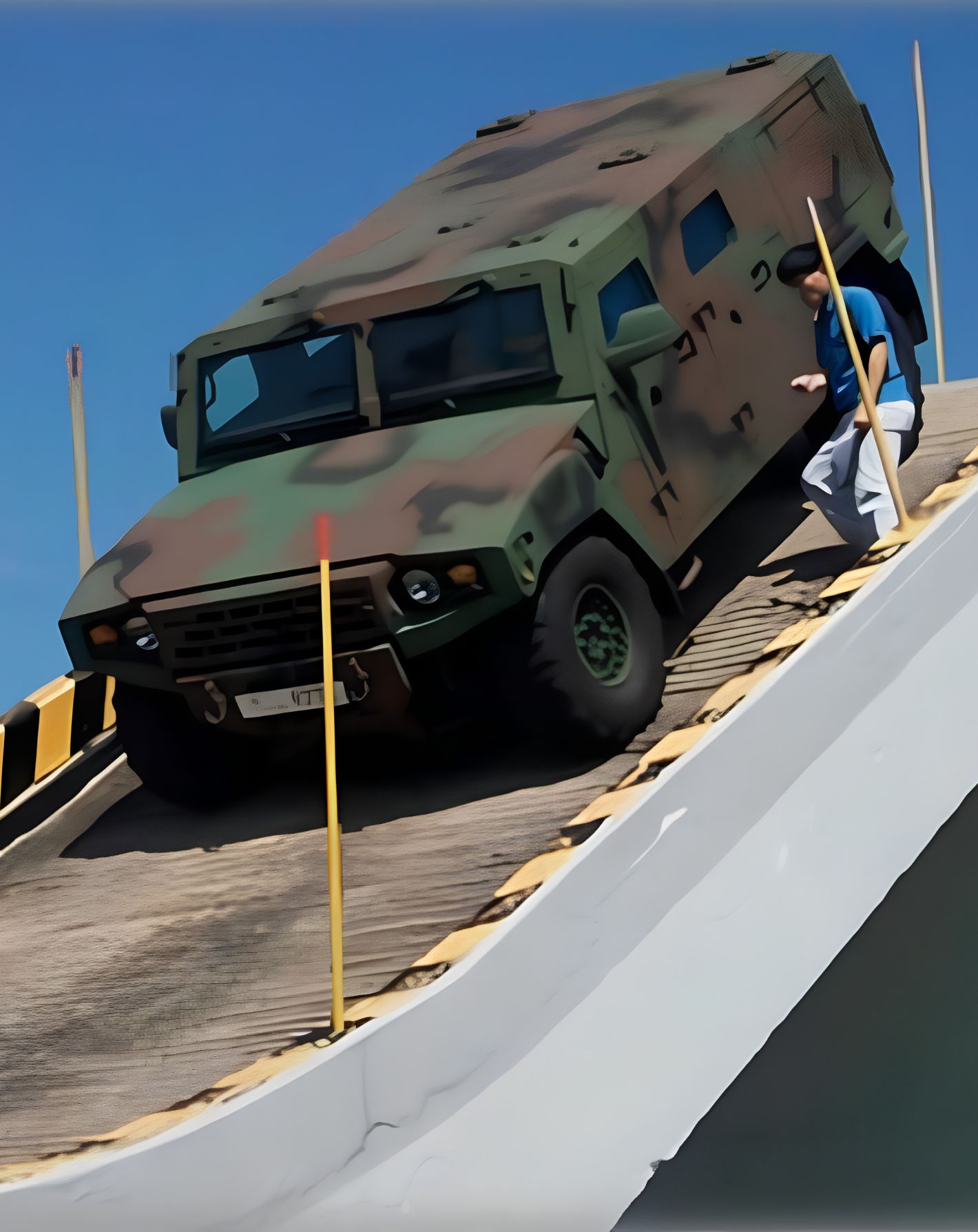

| Gradient | 60 % |
| Minimum turning radius | 7.8 m |
| Fording depth | 760 mm |
| Cruising range | 640 km |
| Seating capacity | 8 seats |
Operational roles
Troop transport
Border patrol
Quick reaction force
Medical evacuation
Available through
- Finished vehicle supply
- CKD assembly programme
- SKD assembly programme
- Mission customisation
